| Brand | ASUS |
|---|---|
| Manufacturer | ASUS, ASUS GLOBAL PTE LTD, SINGAPORE |
| Series | TUF GAMING Z790-PLUS WIFI |
| Colour | BLACK |
| Form Factor | atx |
| Item Height | 14 Inches |
| Item Width | 2.75 Inches |
| Product Dimensions | 27.18 x 6.99 x 35.56 cm; 1.32 Kilograms |
| Item model number | TUF GAMING Z790-PLUS WIFI |
| Processor Socket | LGA 1700 |
| Memory Technology | DDR5 |
| Maximum Memory Supported | 192 GB |
| Memory Clock Speed | 4600 MHz |
| Graphics Card Interface | PCI Express |
| Connectivity Type | Wi-Fi |
| Wireless Type | 802.11a/b/g/n/ac, 802.11ax |
| Number of HDMI Ports | 1 |
| Number of Ethernet Ports | 1 |
| Are Batteries Included | No |
| Manufacturer | ASUS |
| Country of Origin | China |
| Item Weight | 1 kg 320 g |

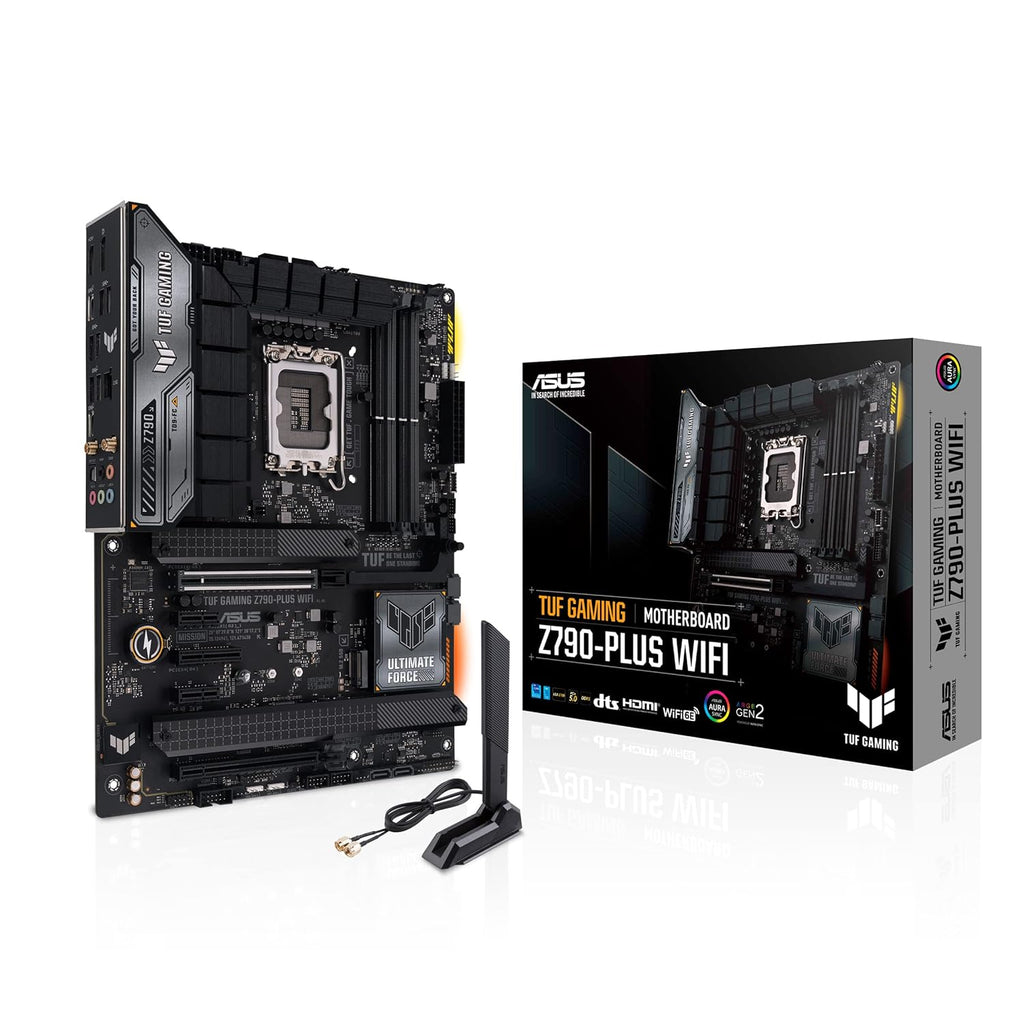

ASUS TUF Gaming Z790-Plus WiFi LGA 1700(Intel®12th&13th Gen) ATX Gaming Motherboard(PCIe 5.0,DDR5,4xM.2 Slots,16+1 DrMOS,WiFi 6,2.5Gb LAN,Front USB 3.2 Gen 2 Type-C®,Thunderbolt 4(USB4),Aura RGB)
Out of stock
From the manufacturer
ASUS is one of Fortune magazine’s World’s Most Admired Companies and is one of the top motherboard and gaming brands as well as a top-three consumer notebook vendor. ASUS is driven by passion and innovation and dedicated to creating quality products for a future smart life, designing and manufacturing products that perfectly meet the needs of today's digital home, office and person. Our wide portfolio includes MG248Q, Chromebox and a range of devices and components, along with AR and VR
TUF GAMING Z790-PLUS WIFI
TUF GAMING Z790-PLUS WIFI takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming.
- Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors
- Enhanced power solution: 16+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: PCIe 5.0, USB 3.2 Gen2x2 Type-C, front USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support
- Made for online gaming: WiFi 6E, Intel 2.5 Gb Ethernet and TUF LANGuard
- Two-Way AI Noise Cancelation: Reduces background noise for crystal-clear communication in games or video conferences
- AI Cooling II: Balances thermals and acoustics of any build with a single click
- Comprehensive cooling: Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
- Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header support
|
|
|
|
|---|---|---|

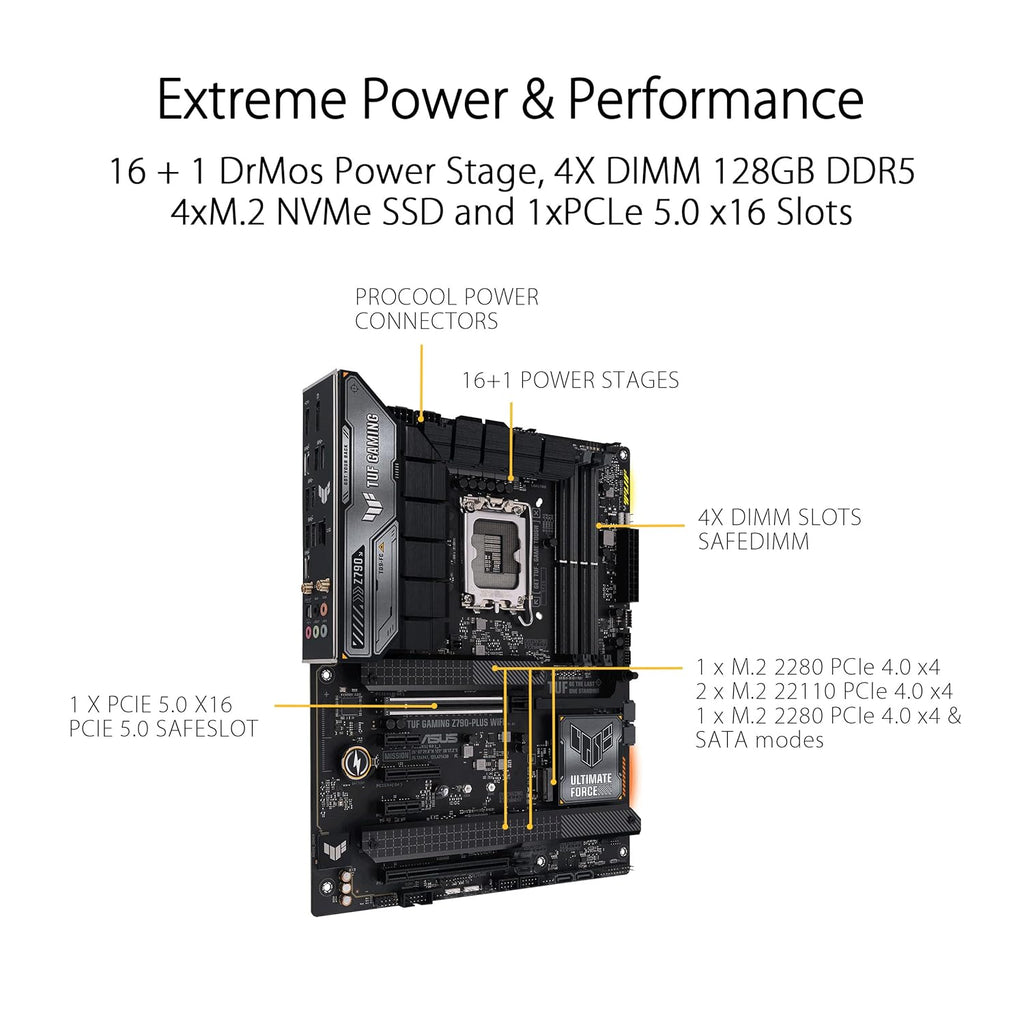

DrMOS Power Stages16+1 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors. |
Six-Layer PCB DesignThe multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom. |
DRAM Overclocking PerformanceUnleash DDR5 With AEMP II ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance. Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance. |
|
|
|
|
|---|---|---|
PCIe 4.0 SupportThe four PCIe 4.0 M.2 slots support up to two 22110 devices and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to four PCIe 4.0 storage devices to enjoy the fastest data transfer speeds. |

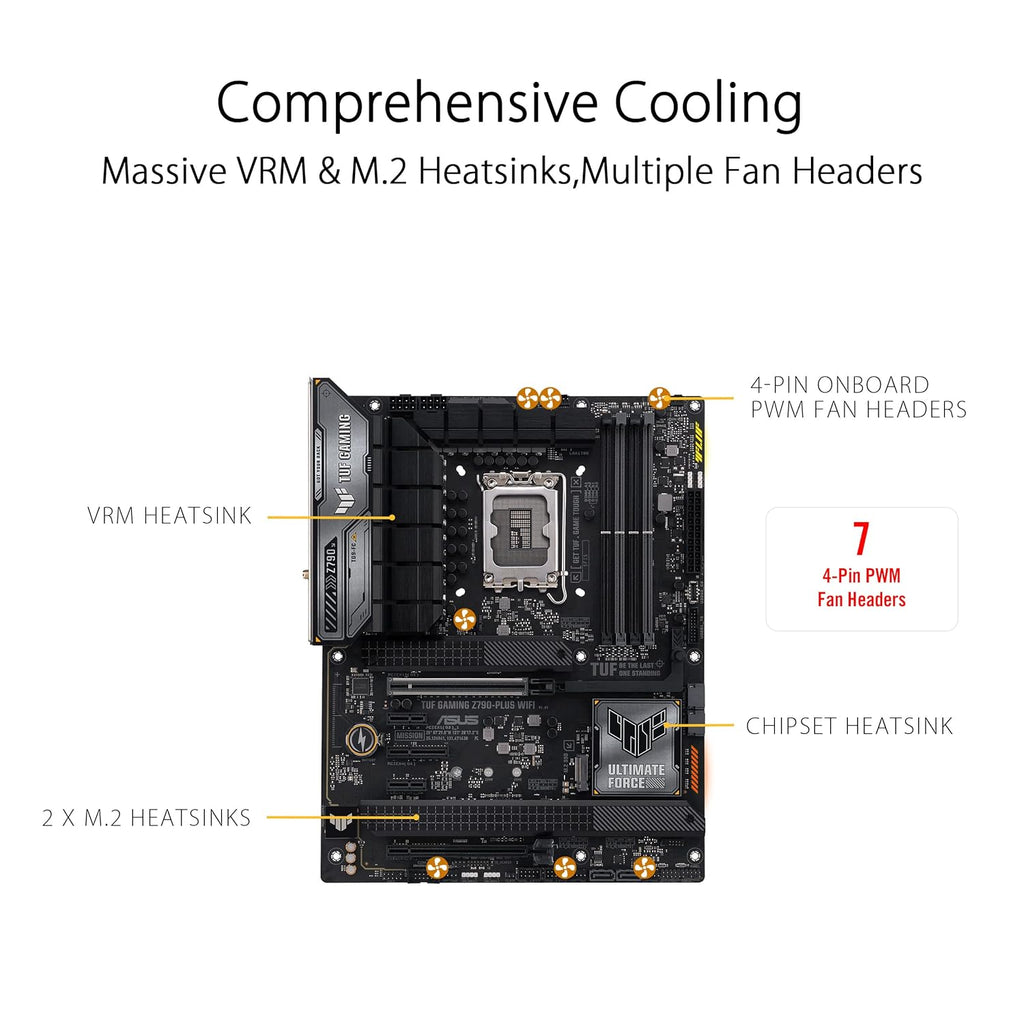

Cooler By DesignThe TUF GAMING Z790-PLUS WIFI is armed with an enlarged VRM heatsink, while three M.2 slots and the PCH feature heatsinks that provide the perfect balance of mass and surface area for heat dissipation. |

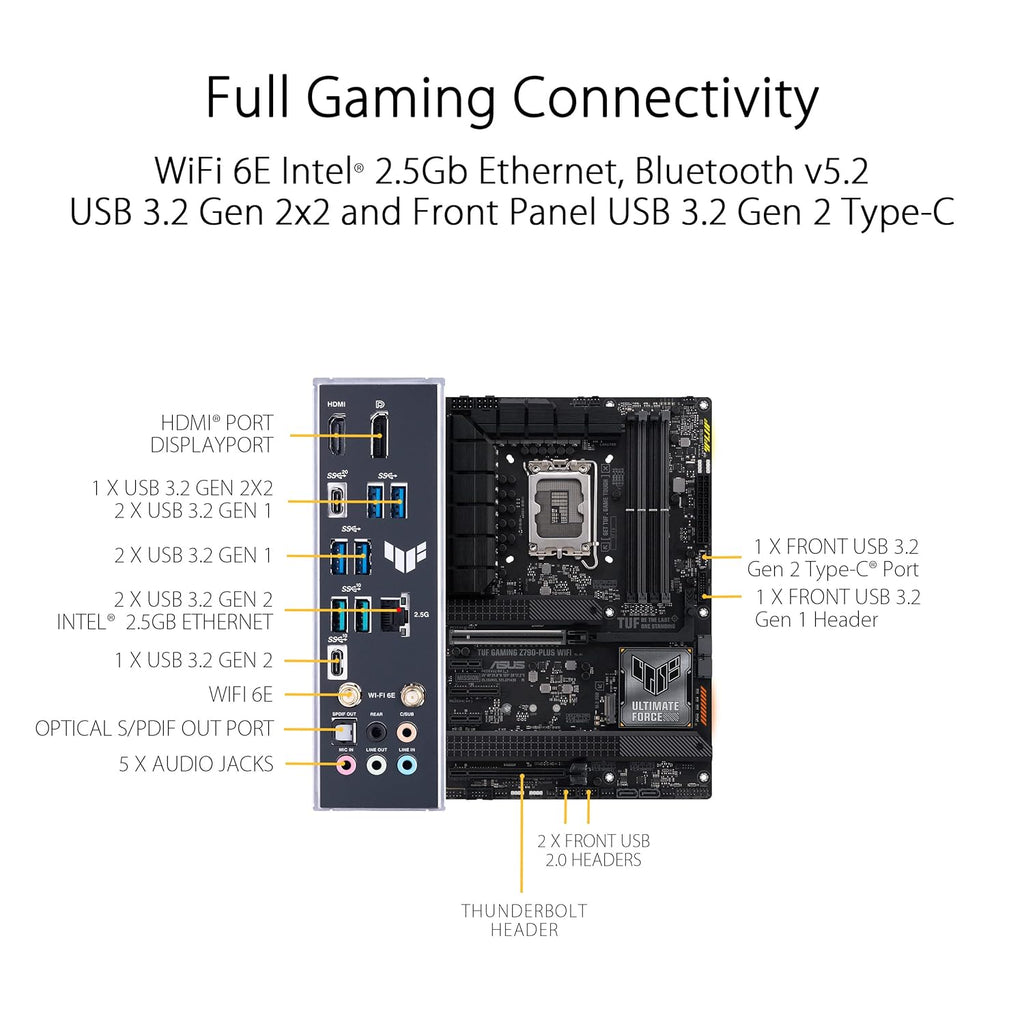

ConnectivityThe TUF-GAMING Z790-PLUS WIFI reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C connections, and Thunderbolt 4 expands compatibility and bandwidth even further. 1. USB 3.2 Gen 2x2 Type-C 2. PCIe 5.0 3. Thunderbolt(USB4) Support Front USB3.2 Gen 2 Type-C |
|
|
|
|
|---|---|---|
WiFi 6Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It delivers ultrafast wireless networking speeds and improved capacity, as well as better performance in dense wireless environments.* |
SafeSlot & SafeDIMMSafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot―all to ensure users get the highest-possible data speeds. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence. |
PCIe Q-ReleaseA physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device. |
